Tymate M12-3 Tire Pressure Monitoring System

• 🚐Auto Solar Charge🚐 Tymate Tire Pressure Monitoring System M12-3 Blue is Automatic solar charging, using higher quality and more durable solar lithium battery panels, which can extend the use time and help focus driving. Drivers don't have to worry about the continuity of product work often. (Cigarette Lighter / USB charging can also be used when there is no sunlight)

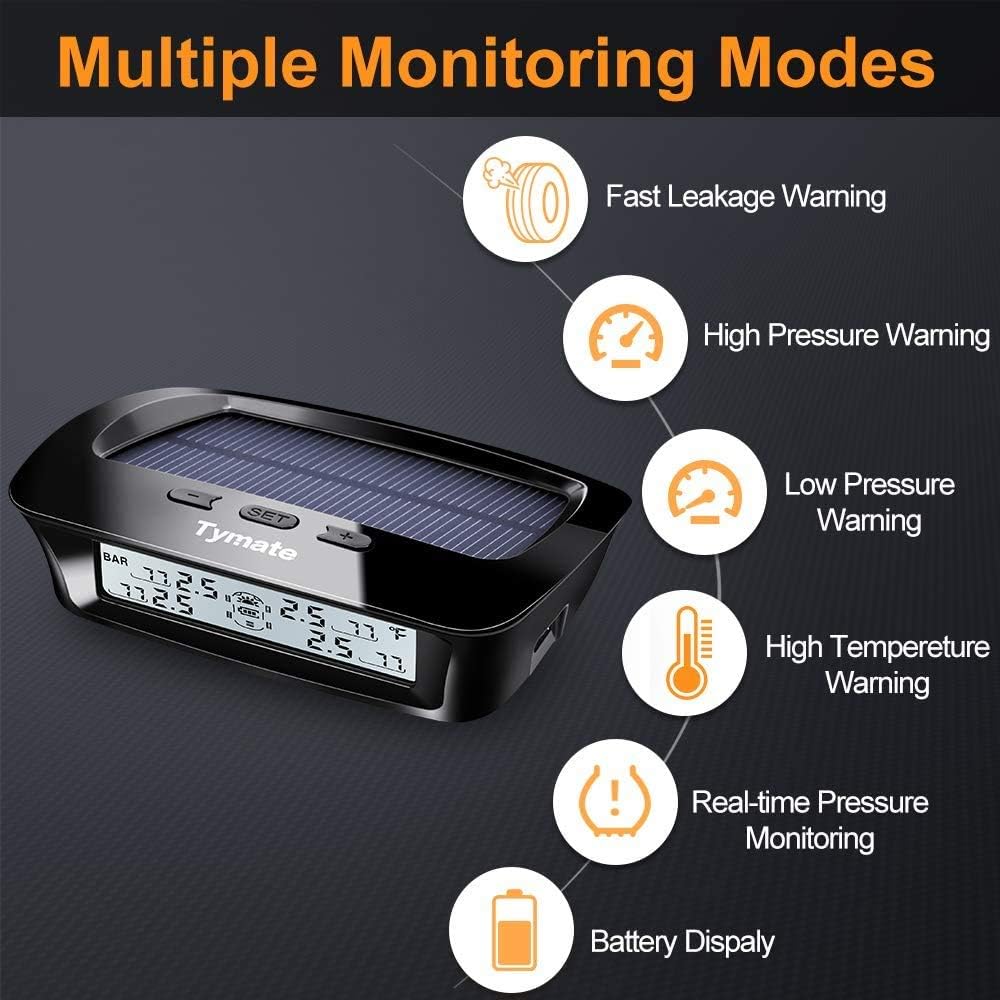

• 🚐Five Types Of Alarms and User-set Alarm Values🚐 Tymate Tire Pressure Monitoring System M12-3 Blue equipped with five-alarm modes (high pressure, low pressure, high temperature, rapid air leakage, sensor low battery alarm), promptly reporting the abnormal tire condition to the driver to help safe driving. Users can DIY set the pressure and temperature alarm values.

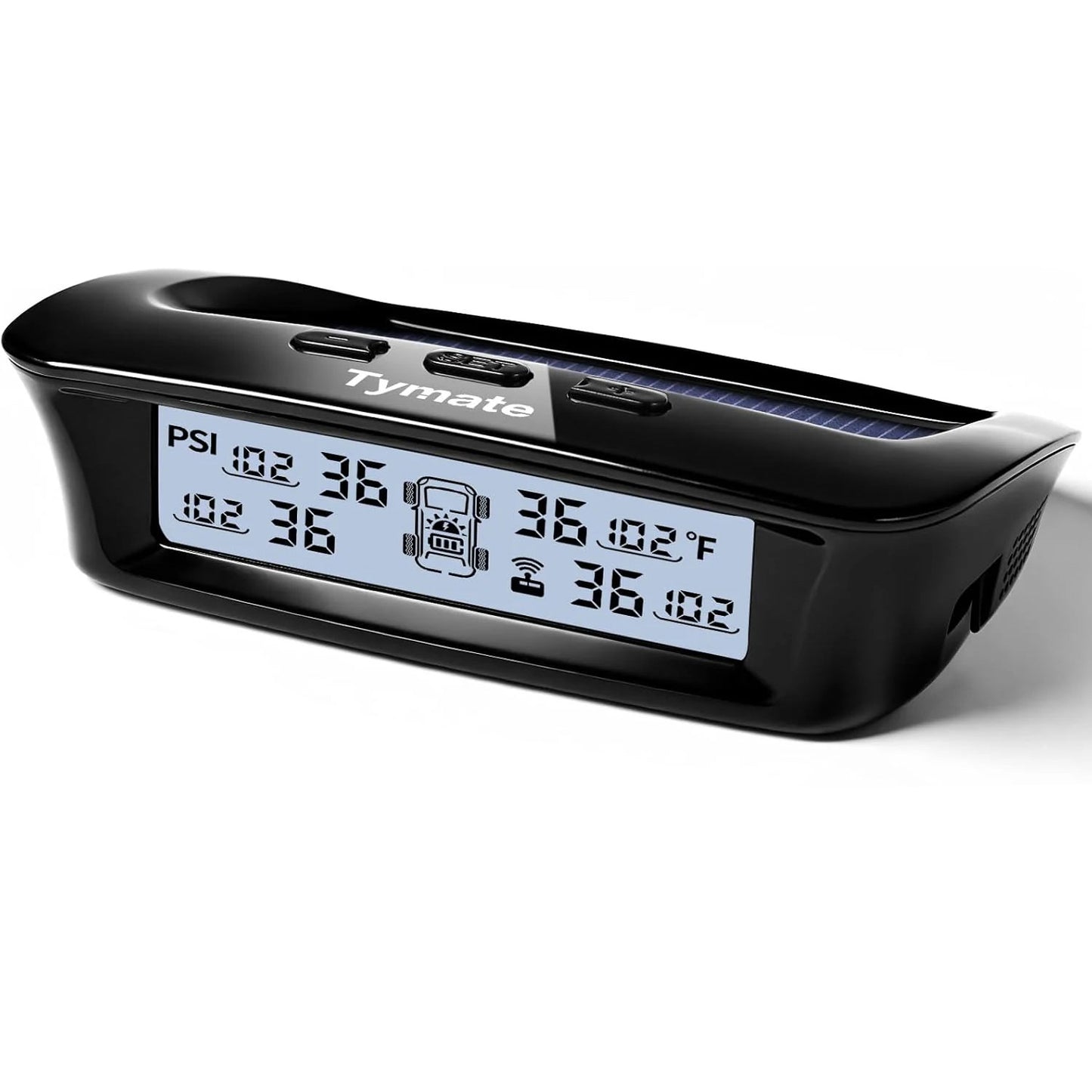

• 🚐Auto Backlight & Sleep & Awake Mode🚐 Tymate Tire Pressure Monitoring System M12-3 Blue's auto-adjustable backlight can clearly display the data in low light or strong light environment. Real-time monitoring and real-time display of data is the best helper for driving. It will enter the sleep energy-saving mode after the vehicle stops running for 10 minutes, and will automatically wake up when the car is turned on. Prolong product life while saving energy.

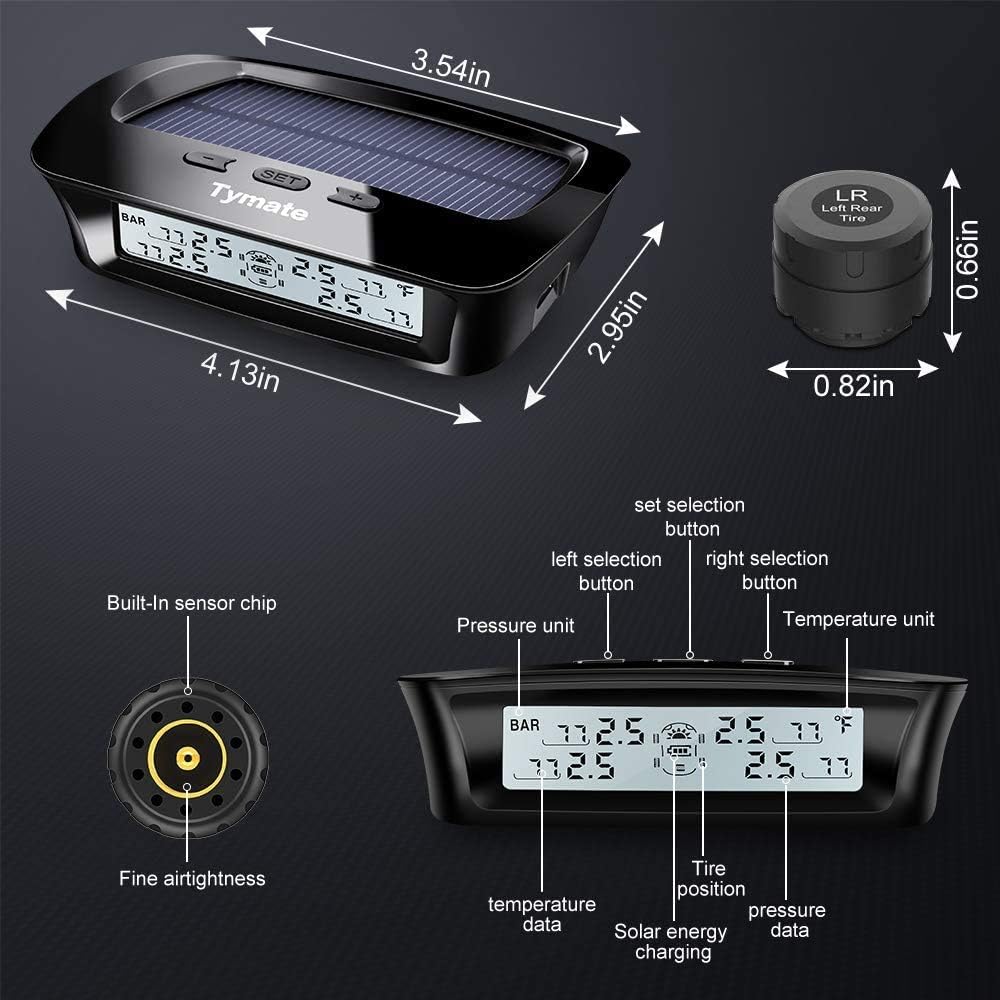

• 🚐Advanced Sensor ＆ repeater🚐 Tymate Tire Pressure Monitoring System M12-3 Blue equipped with 6 advanced external sensors, which are low power consumption and have a long working life (2 years maximum). Small size, light-weight, high accuracy of sensing tire pressure (error range ≈3psi), and easy installation. It also can withstand harsh environments. The repeater could extend the sensing range beyond 45 feet.
• 🚐Customer Service Alway Here for You🚐 After the first installation, please turn on the monitor first then install the sensor, and all data will be displayed after driving for 5-10 minutes. The sensor needs motion activation. If you encounter any other problems, please do not hesitate to contact us! How To Contact Us: Our Contact Information Is On The Last Page Of The User Manual.

Important information

Legal Disclaimer

Note Before Purchase How Can I Know If This Device Can Fit My Vehicle? You should first figure out the following points to determine whether your vehicle can use this device:1. The number of tires of your vehicle: 4 tires or 6 tires? We do not recommend you to use these models on the RV trailers or other large vehicles: CL205, M12-3 Black, TM527M, M7-3. If the type of your vehicle is RV or trailer, please consider the model: M12-3 Blue.2. The body length of your vehicle: What is the length of your vehicle? If you have purchased a Tymate product that does not fit a repeater, please make sure that your vehicle is less than 30ft in length (consider the interference of objects and electromagnetic). If you have purchased a product that adapts to the repeater (M12-3 Blue), then you do not need to worry about whether the length of the vehicle can be matched. Because the maximum signal transmission distance can reach 40ft (consider the interference of objects and electromagnetic). 3. Standard tire pressure value: You can check the standard tire pressure value of your own tire. Under normal circumstances, the tire manufacturer will print this standard tire pressure value on the tire body, or on the "Tire Manual". If you have original tires that fit the vehicle, you can also see this recommendation on the left side of the main driving position. Note: If your standard tire pressure value exceeds the maximum tire pressure value that can be detected by this tpms (87PSI), or when your tire is in a hot tire state, it will exceed 87PSI, we sincerely advise you consider other models.4. The need to set the alarm value: Please note before buying that the range of the lowest and highest tire pressure values that this product can set is 12-87PSI. If your demand for monitoring tire pressure alarm values exceeds this range, we suggest you consider other models. Why Is Not Date Displayed After I Installed It? After the first installation, all data will be displayed after driving for 5-10 minutes. The sensor needs motion activation. THE Measurement error The error value of measuring tire pressure is 3PSI. The Sensor Or Monitor Is Not In The Normal Operation If you encounter any other problems, please do not hesitate to contact us! How To Contact Us: Our Contact Information Is On The Last Page Of The User Manual.

Tymate - Always focus on Tire Pressure Measure System.

Our company is a professional TPMS enterprise integrating R&D, production and brand management.

Research & development - We are committed to developing and improving TPMS that is more effective for tire and driving safety.

Production - To ensure the top quality, we have a full set of rigorous proceeding technology with relative tooling and special facilities.

Brand Management - Tymate highly values brand image. Believing in integrity highest, quality first, customer priority, we provide professional after-sell, and our 24/7 consultant is always ready to ensure your satisfaction.

Nowadays, we have been developing more and more new products about TPMS sold to over 50 countries and regions. We are becoming one of the most reliable suppliers of TPMS in the world. Our vision is to improve tire safety and guard your very drive.

Note Before Usage:

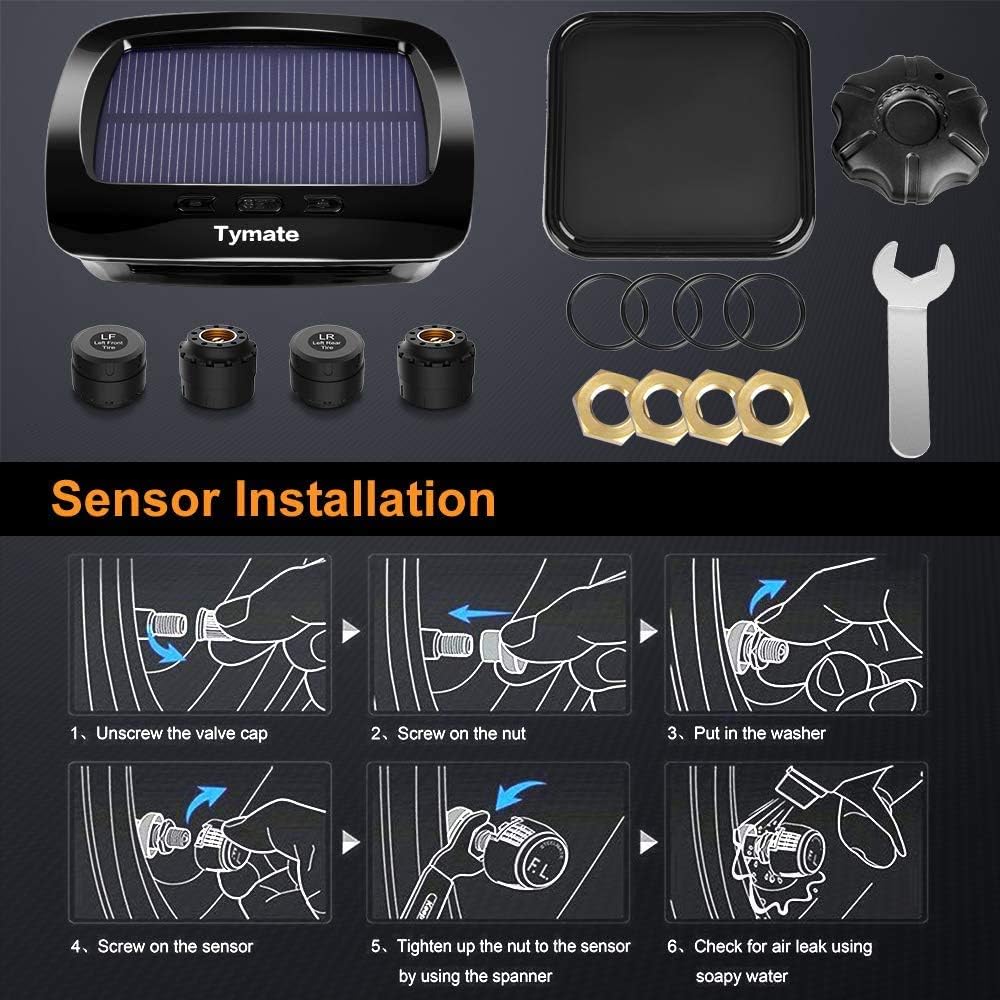

1. Tymate's tpms does not require any complicated operations from you, you only need to turn on the monitor first, and then install the sensor on the tire at the corresponding position. You do not need to manually program, all products have been programmed before leaving the factory.

2.Please turn on the monitor before installing the sensor on the tire. Please do not install the sensor on the tire before turning on the monitor. This operation may cause problems such as sensor data not being displayed and the monitor showing garbled characters. If you have installed the sensor on the tire first, please start your vehicle immediately and observe whether there is data displayed after 5-10 minutes. If there is still no data displayed, please remove the sensor and let it rest for 10 minutes before proceeding to the correct installation sequence.

3.If you find that your sensor's data is not displayed or displayed intermittently during use, it may be that the sensor's wireless signal transmission is interfered by objects and electromagnetic interference. You can solve this problem by moving the display away from the interference source, such as moving the monitor away from the GPS navigator and closer to the driving position. If the problem persists after trying the above suggestions, you may need to equip a repeater that extends the signal transmission distance and eliminates interference.

4.If a tire blowout puncture occurs: tpms could not avoid the puncture caused by sharp objects or damaged tires. Because tpms can only monitor the air pressure and temperature over a period of time, but cannot monitor instantaneous changes. So it is only suitable for avoiding tire abnormalities caused by changes in air pressure or temperature, which occur slowly, not instantaneously.

Tymate recommends: Do a comprehensive tire inspection for at least one month and ask your tire technician to replace your faulty tire in time.

5.How to enter the parameter setting interface of M12-3 ?

Long press the SET instead of "SET and -".
