Tymate M7-3 Tire Pressure Monitoring System

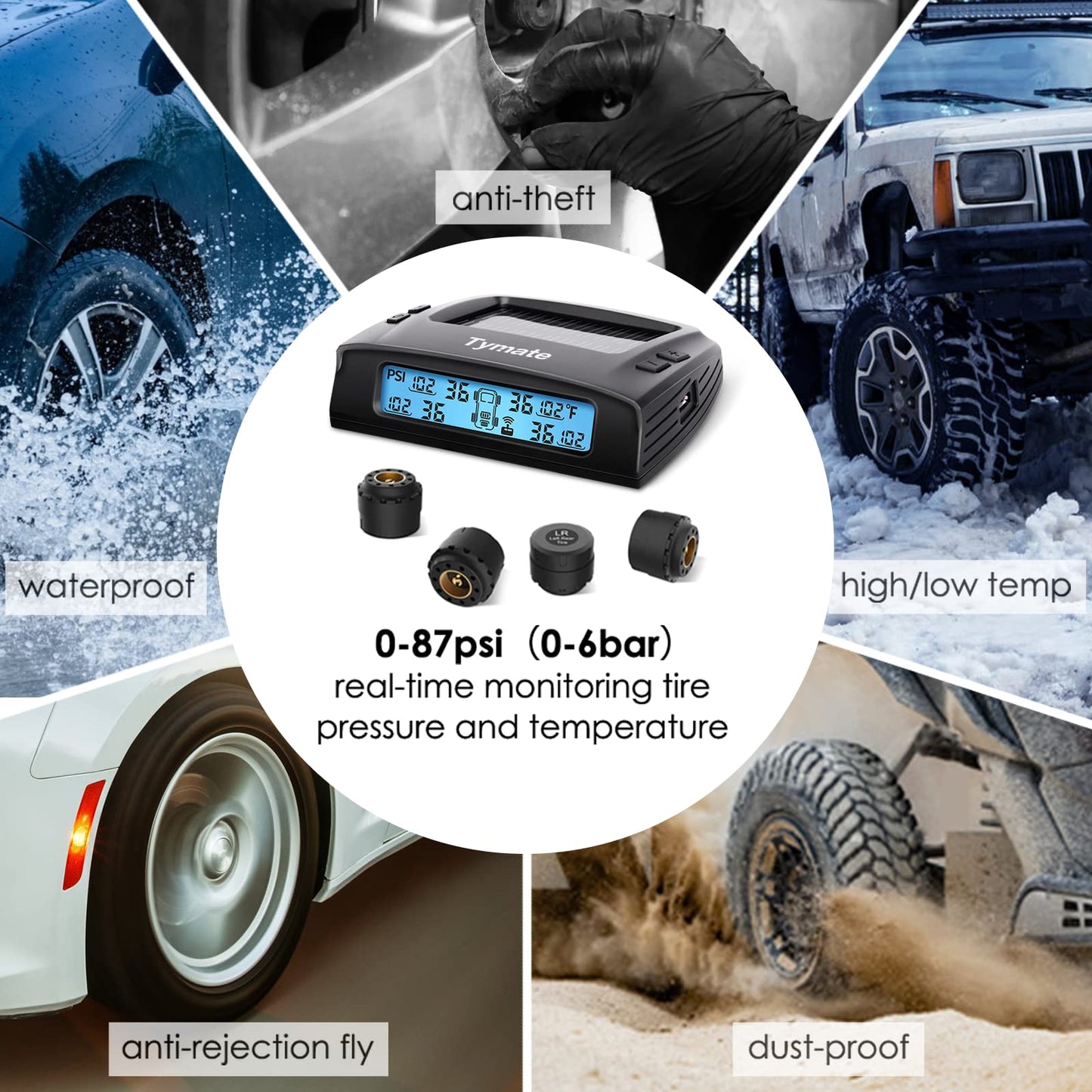

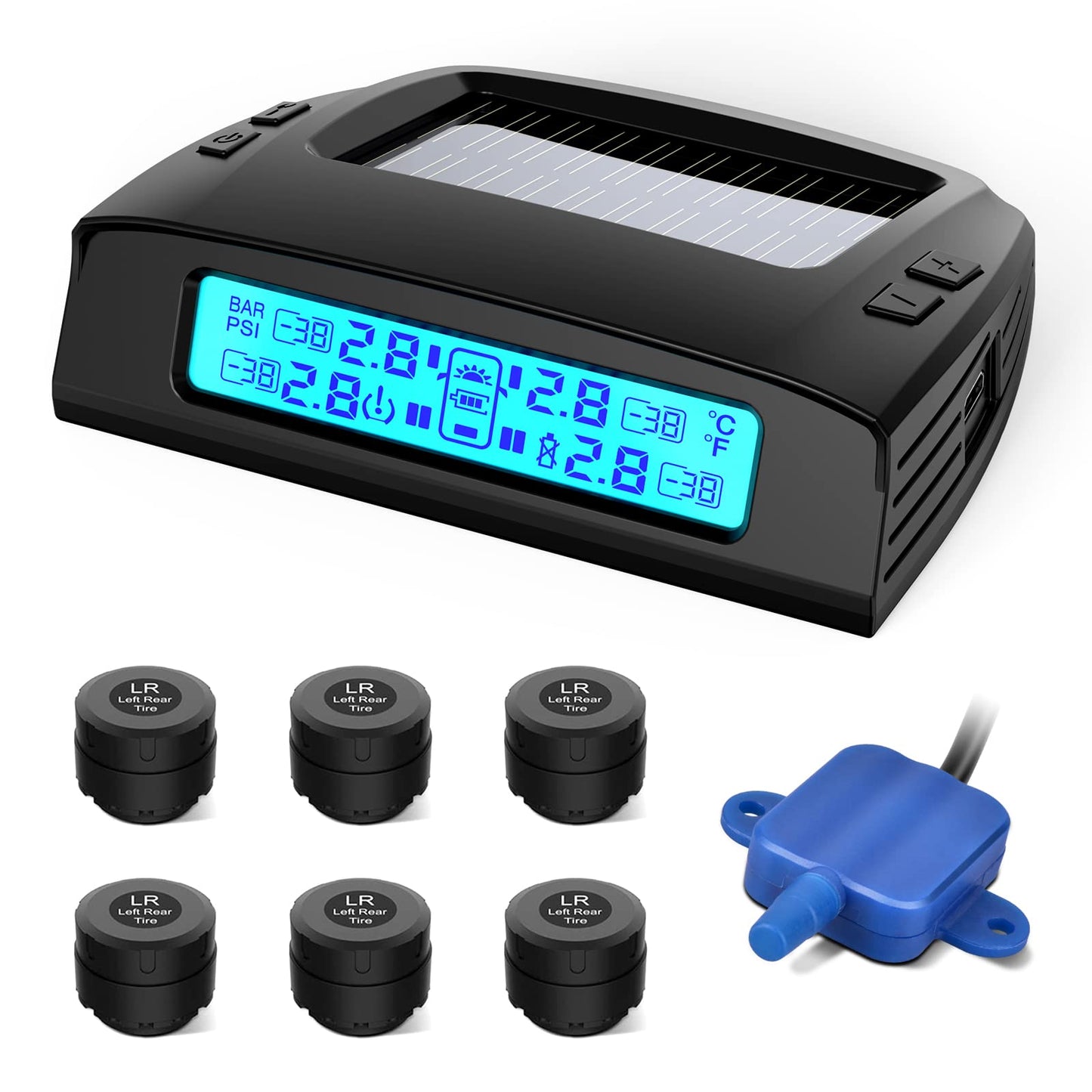

TPMS offers auto-calibrating five alarm modes long-lasting sensors triple solar/USB/car charger power auto-adjusting color display for up to 7 tires and manual power-saving mode.

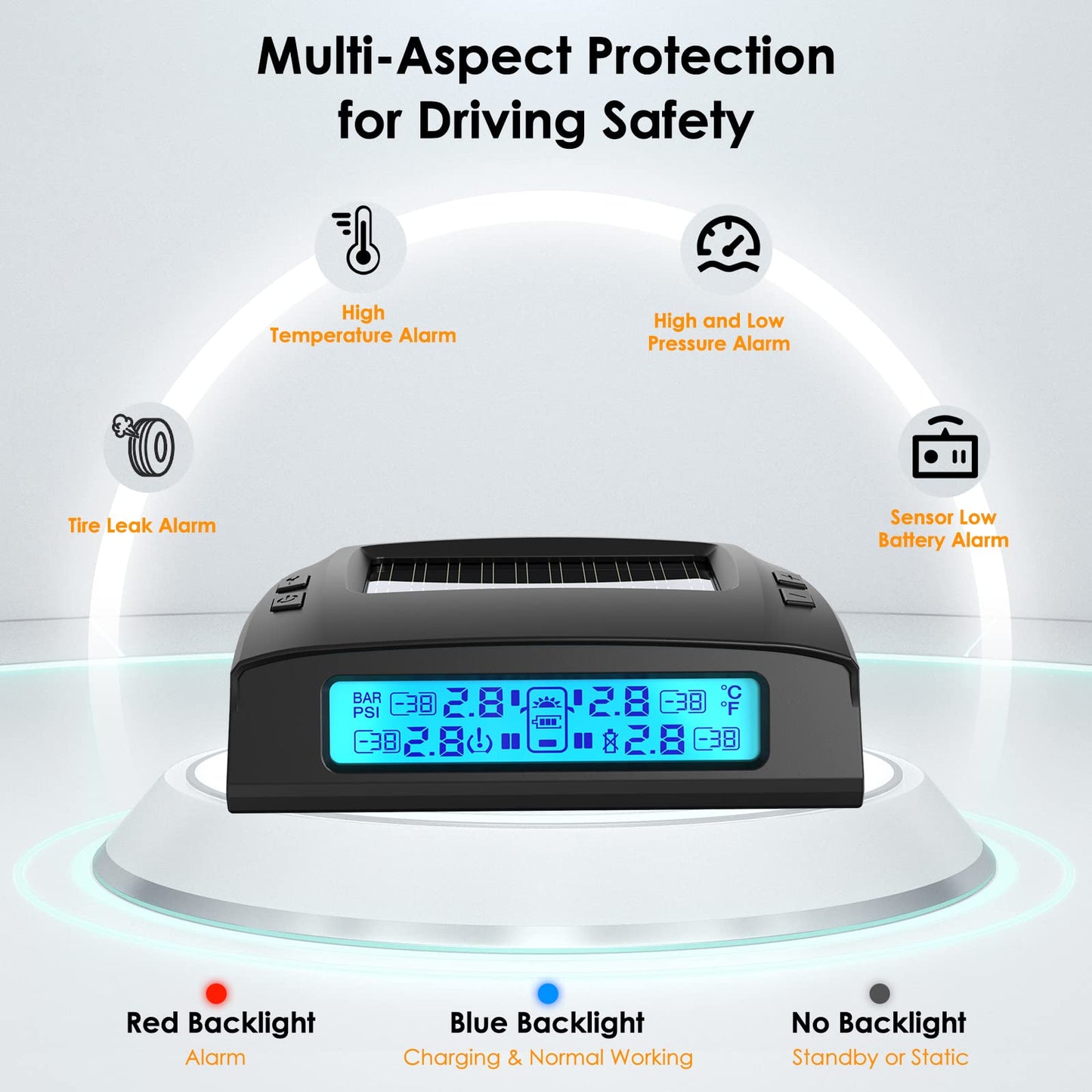

- 💎Five Alarm Modes with Auto-Calibration: Features fast leak, high/low-pressure, high-temperature, and sensor low-voltage alarms. Automatically sets installed pressure as reference, alerting within +25% to –15% PSI.

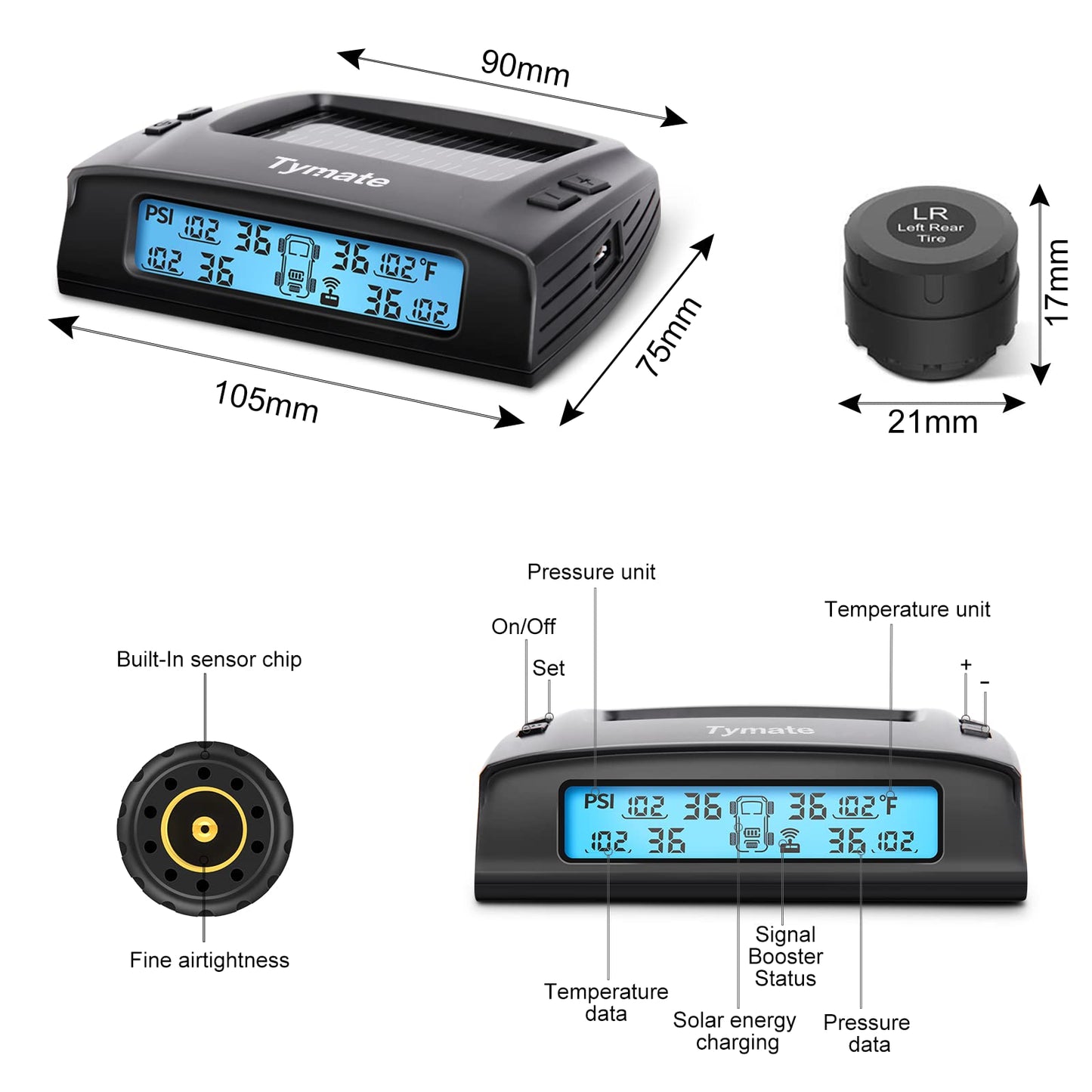

- 💎Long-Lasting & Accurate Sensors: Four external sensors with up to 2-year battery life (CR1632, lasts ~6 months). Compact, durable, highly accurate (≈3psi error), and easy to install.

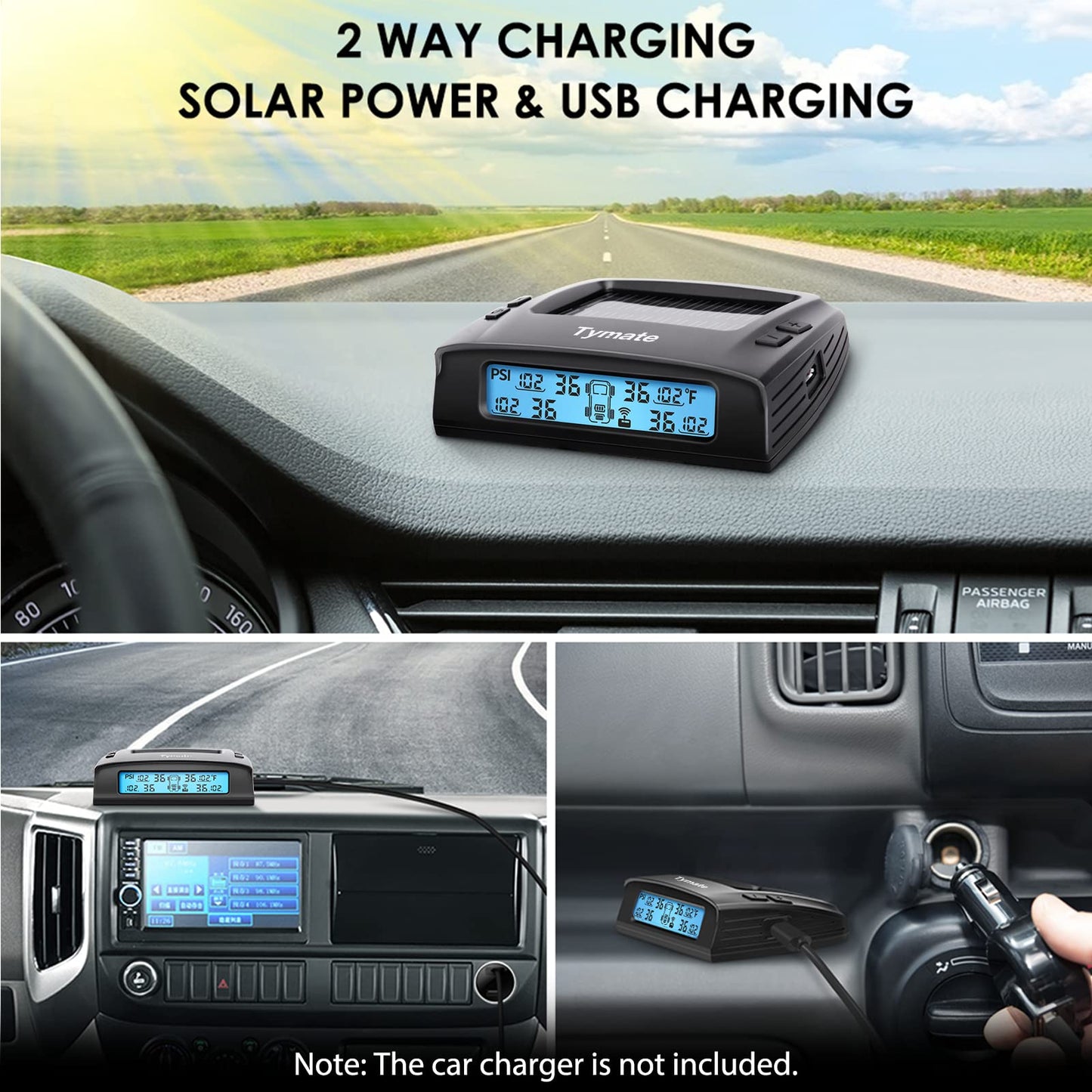

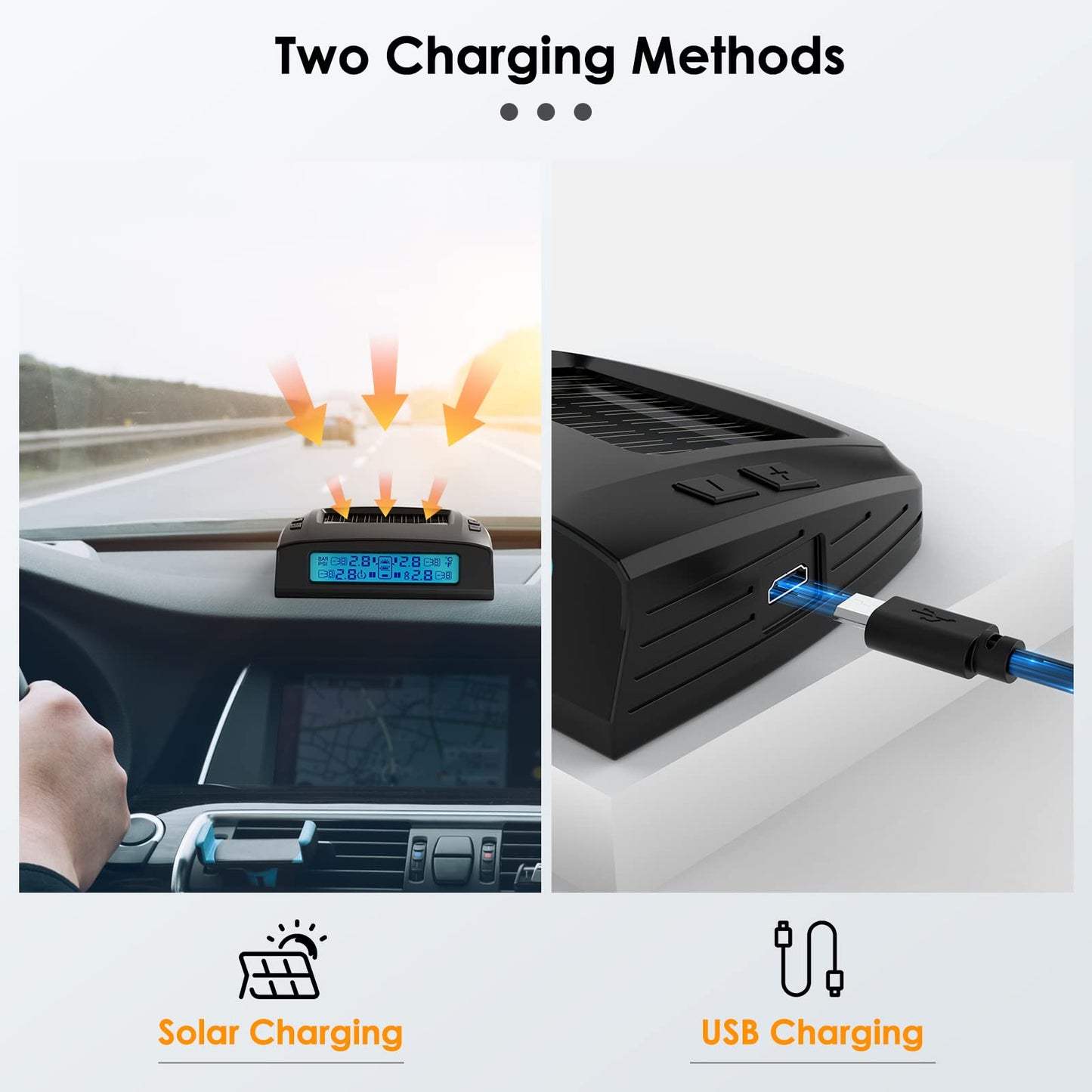

- 💎Triple Charging Options: Solar-powered with backup USB and car charger ports (adapter not included). Ensures continuous operation without battery worries.

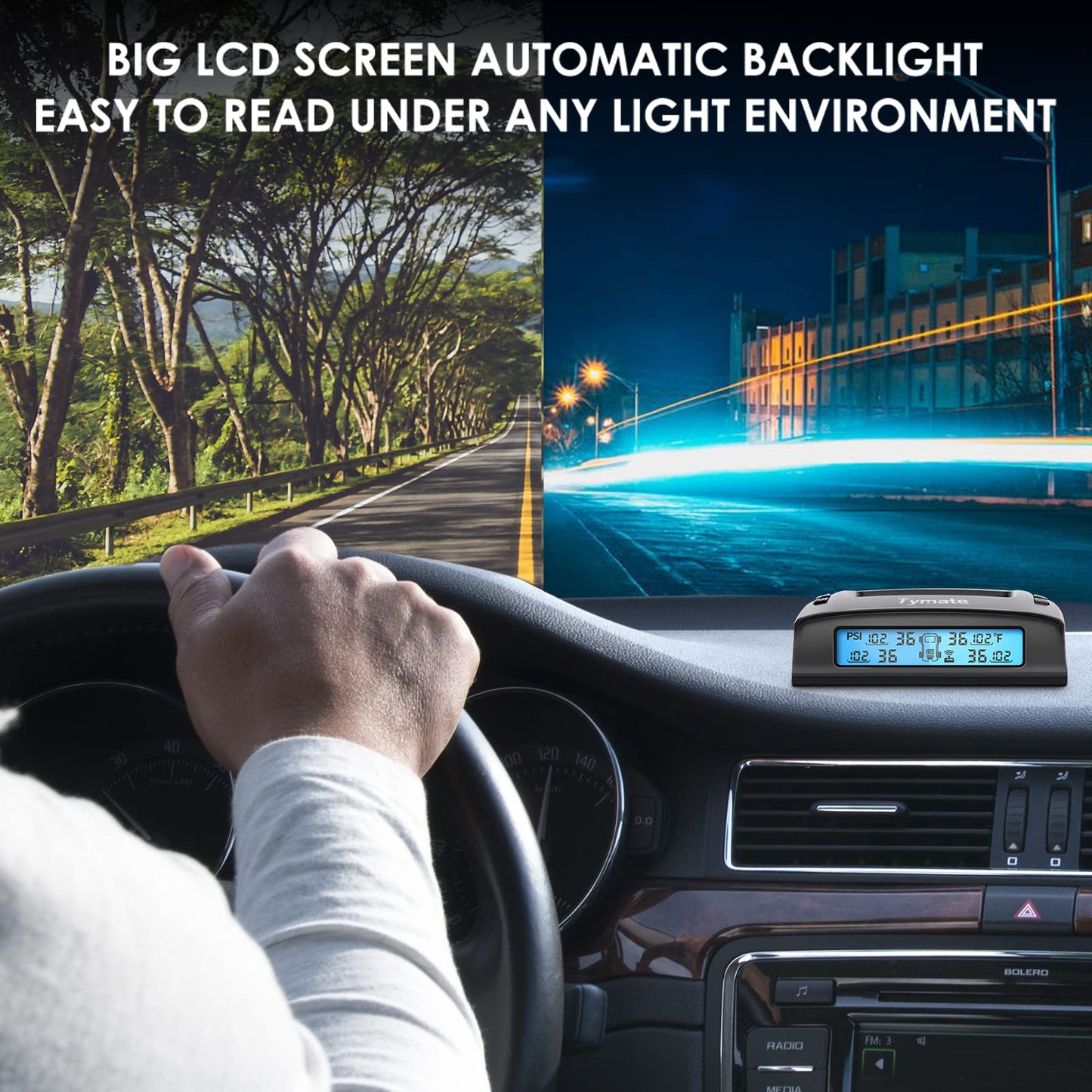

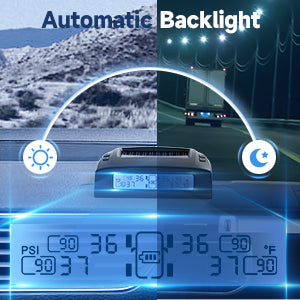

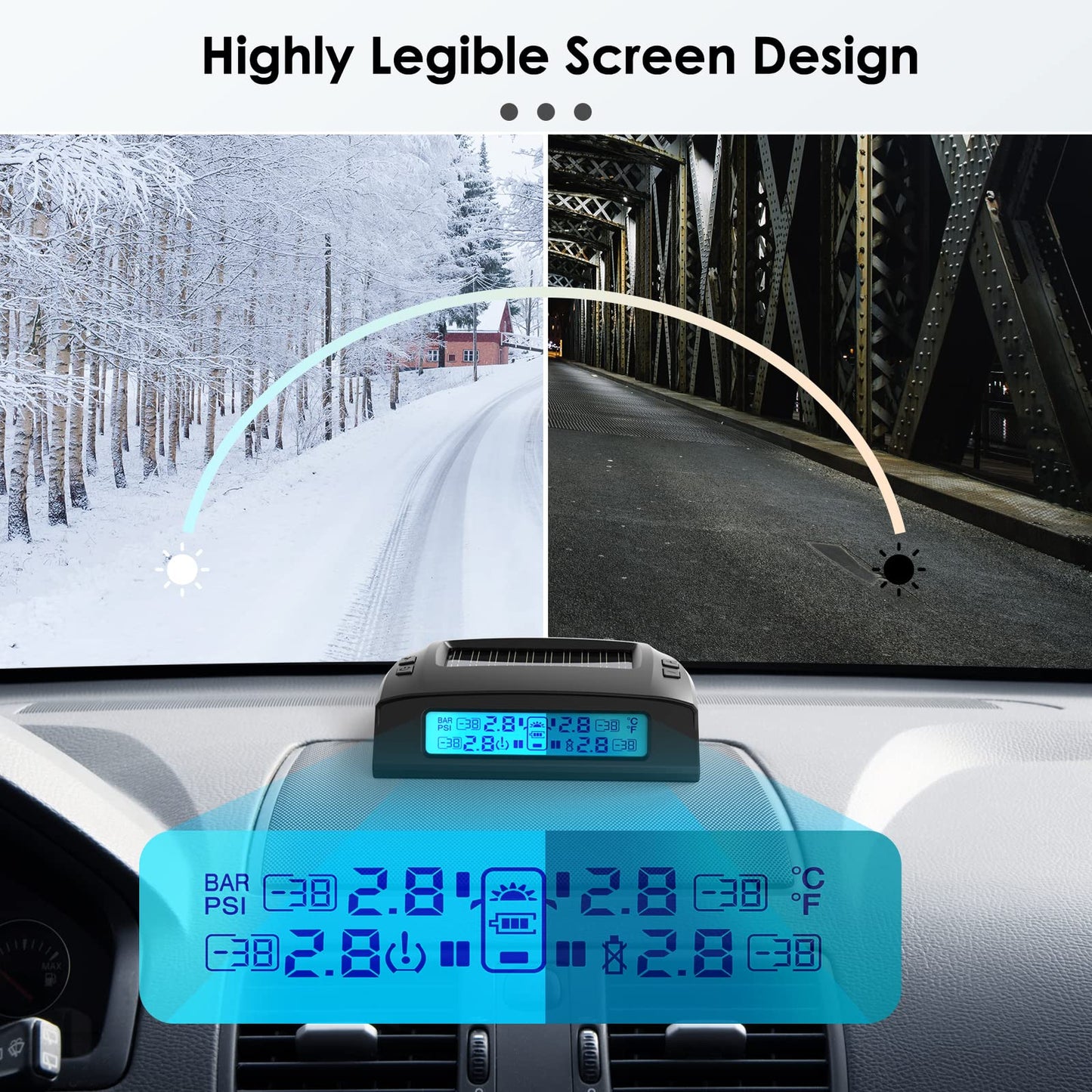

- 💎Auto-Adjusting Color Display: Adjusts backlight for readability. Shows real-time status via colors: blue (on), red (alert), gray (standby). Monitors 4 tires simultaneously, supports up to 7 including spare.

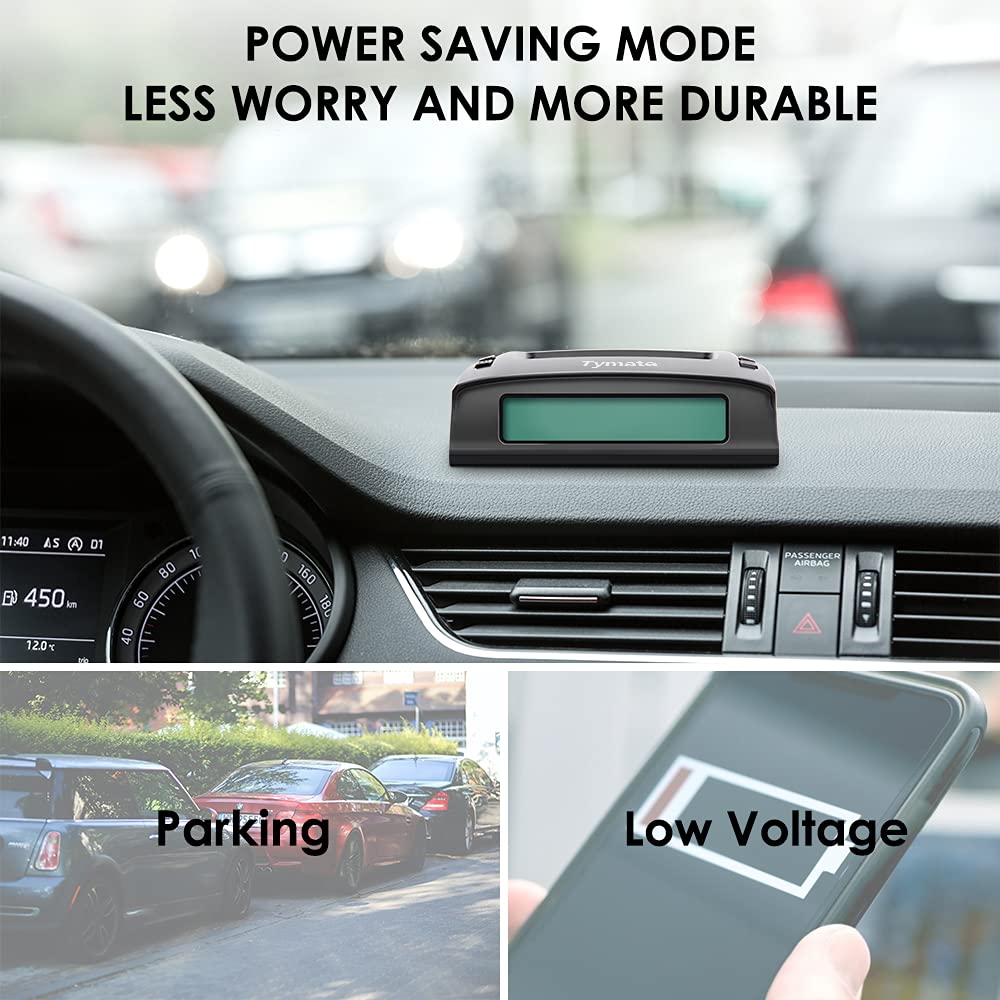

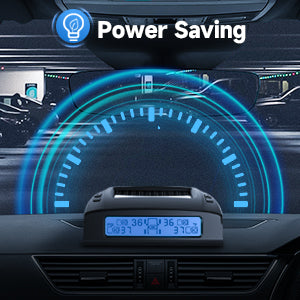

- 💎Power-Saving with Manual Control: Includes auto-sleep mode and on/off button to extend durability and conserve power.
TPMS offers auto-calibrating five alarm modes long-lasting sensors triple solar/USB/car charger power auto-adjusting color display for up to 7 tires and manual power-saving mode.
- 💎Five Alarm Modes with Auto-Calibration: Features fast leak, high/low-pressure, high-temperature, and sensor low-voltage alarms. Automatically sets installed pressure as reference, alerting within +25% to –15% PSI.
- 💎Long-Lasting & Accurate Sensors: Four external sensors with up to 2-year battery life (CR1632, lasts ~6 months). Compact, durable, highly accurate (≈3psi error), and easy to install.
- 💎Triple Charging Options: Solar-powered with backup USB and car charger ports (adapter not included). Ensures continuous operation without battery worries.
- 💎Auto-Adjusting Color Display: Adjusts backlight for readability. Shows real-time status via colors: blue (on), red (alert), gray (standby). Monitors 4 tires simultaneously, supports up to 7 including spare.
- 💎Power-Saving with Manual Control: Includes auto-sleep mode and on/off button to extend durability and conserve power.
About Our Brand
Tymate - Always focus on Tire Pressure Measure System.
Our company is a professional TPMS enterprise integrating R&D, production, and brand management.
Research & development - We are committed to developing and improving TPMS that is more effective for tire and driving safety.
Production - To ensure top quality, we have a full set of rigorous proceeding technology with relative tooling and special facilities.
Brand Management - Tymate highly values brand image. Believing in integrity highest, quality first, customer priority, we provide professional after-sell, and our 24/7 consultant is always ready to ensure your satisfaction.
Nowadays, we have been developing more and more new products about TPMS sold to over 50 countries and regions. We are becoming one of the most reliable suppliers of TPMS in the world. Our vision is to improve tire safety and guard your very drive.
Note Before Usage:
1. Tymate's tpms does not require any complicated operations from you, you only need to turn on the monitor first, and then install the sensor on the tire at the corresponding position. You do not need to manually program, all products have been programmed before leaving the factory.
2.Please turn on the monitor before installing the sensor on the tire. Please do not install the sensor on the tire before turning on the monitor. This operation may cause problems such as sensor data not being displayed and the monitor showing garbled characters. If you have installed the sensor on the tire first, please start your vehicle immediately and observe whether there is data displayed after 5-10 minutes. If there is still no data displayed, please remove the sensor and let it rest for 10 minutes before proceeding to the correct installation sequence.
3.If you find that your sensor's data is not displayed or displayed intermittently during use, it may be that the sensor's wireless signal transmission is interfered by objects and electromagnetic interference. You can solve this problem by moving the display away from the interference source, such as moving the monitor away from the GPS navigator and closer to the driving position. If the problem persists after trying the above suggestions, you can use our repeater that extends the signal transmission distance and eliminates interference.
4.If a tire blowout puncture occurs: tpms could not avoid the puncture caused by sharp objects or damaged tires. Because tpms can only monitor the air pressure and temperature over a period of time, but cannot monitor instantaneous changes. So it is only suitable for avoiding tire abnormalities caused by changes in air pressure or temperature, which occur slowly, not instantaneously.
Tymate recommends: Do a comprehensive tire inspection for at least one month and ask your tire technician to replace your faulty tire in time.
Important Information
To determine whether this device is compatible with your vehicle, please check the following points:
Number of Tires
- Does your vehicle have 4 tires or 6 tires?
- These models are not recommended for RVs, trailers, or other large vehicles:
1. CL205
2. M12-3 Black
3. TM527M
4. M7-3
- If your vehicle is an RV or trailer, please consider: M12-3 Blue
If you purchased a Tymate product without a repeater, your vehicle should be less than 30 ft in length
(signal may be affected by objects and electromagnetic interference).
If you purchased a model with a repeater (M12-3 Blue):
Vehicle length is not a concern
Maximum signal transmission distance is up to 40 ft
- Check your vehicle’s recommended tire pressure, which can usually be found:
- Printed on the tire sidewall
- In the tire manual
- On the label near the driver’s seat
- ⚠️ Important:
- If your standard tire pressure exceeds 87 PSI
- Or if hot tire pressure may exceed 87 PSI
- This TPMS may not be suitable — consider other models
- The adjustable alarm range for this product is 12–87 PSI
- If your monitoring needs fall outside this range, we recommend choosing a different model
- After first installation, the system requires motion activation
- Please drive for 5–10 minutes
- Data will display once the sensors are activated
The tire pressure measurement error is approximately ±3 PSI
- If you experience any issues, please contact us directly
How to Contact Us
- Our contact information can be found on the last page of the user manual
